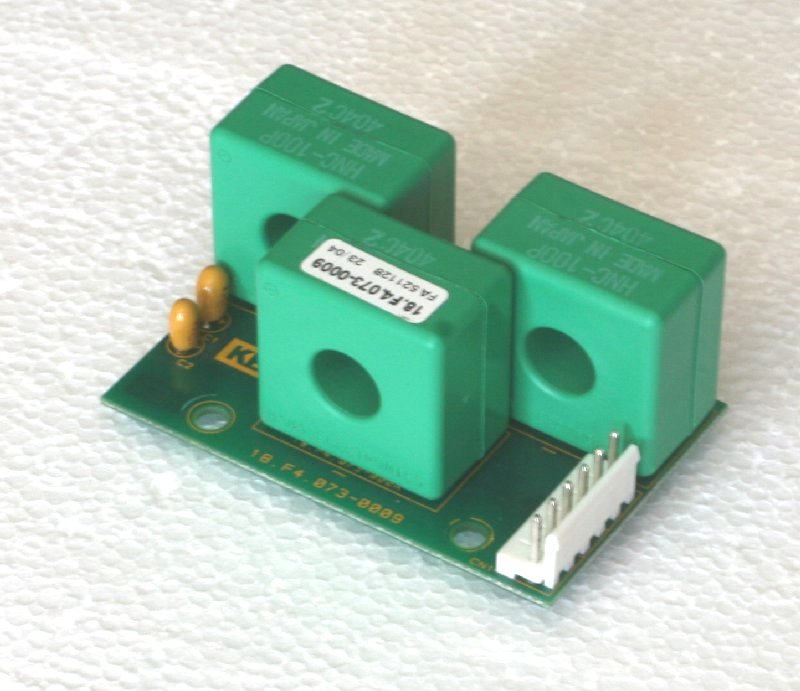

18.F4.073-0009 KEB 3-phase 100A transducer board (JPL-400A)

This is a replacement board for 18.F4.073-0009 KEB. The board has the same size and montage holes as the original 18.F4.073-0009 KEB. The printed circuit board layout is different.

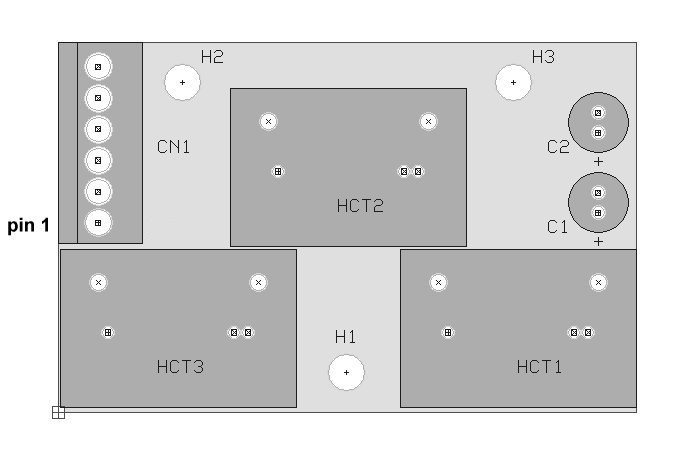

JPL-400A PCB

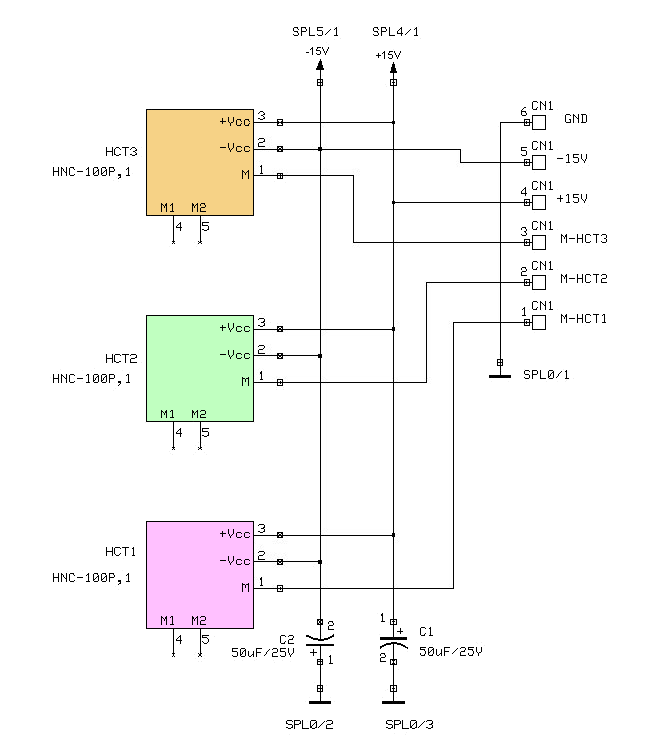

JPL-400A SCH
