The 6267E is single board two-channel regulated variable power supply. Both channels are independend with separated power input and voltage / current adjust. The power supply has two stages: preregulator with output filter folowed by regulator. Each channel can works in CV or CC mode and has overcurrent protection.

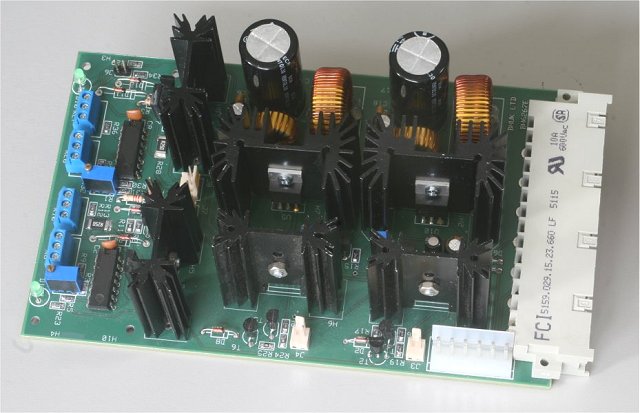

Fig. 1 - top view

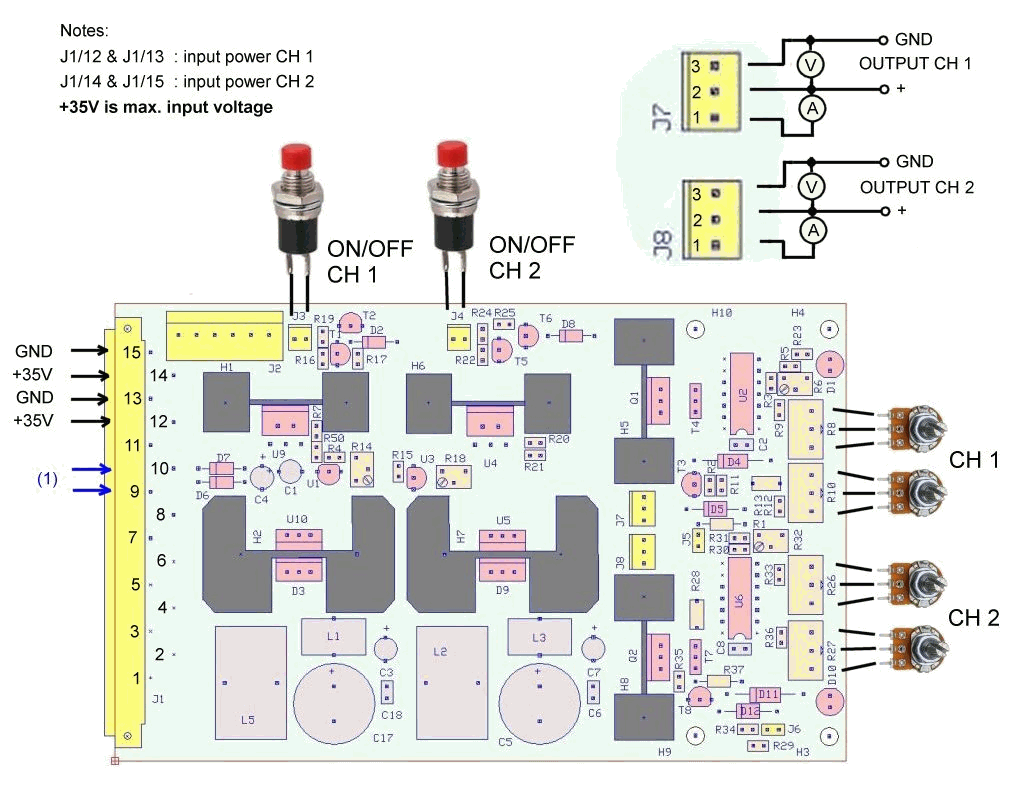

Fig. 2 - connection via edge power connector


Fig. 3 - connection via bus connector
