GPIB Embedded Module (JPL-9914A)

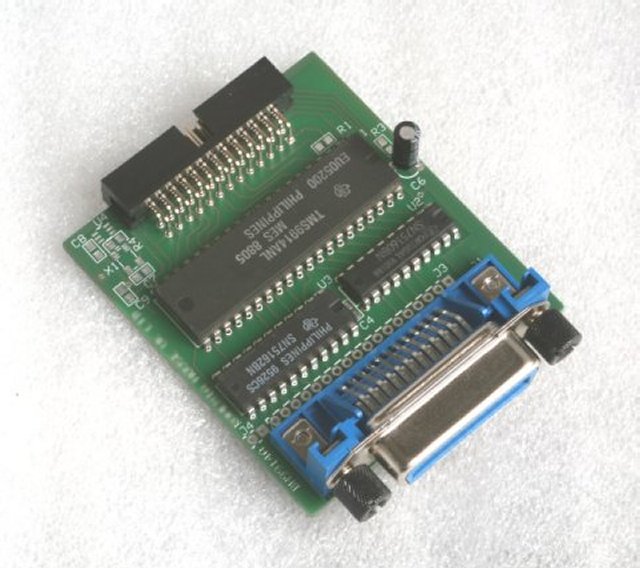

This embedded module allows to connect a devices to GPIB (also HP-IB or IEEE-488) network. The embedded module is based on National Instruments NAT9914 gpib controller (or Texas Instruments TMS9914) and is easy accessible over eight data bits from any MCU system. The board can be populated either as controller or talker/listerner only.

Optionally, the embedded module can be populated with a local oscillator and local RESET circuit. The local oscillator can be in range from 2 MHz up to 20 Mhz. If the local oscillator is installed, the clock signal is available on system connector for external use. Module size is 73 mm x 64 mm.

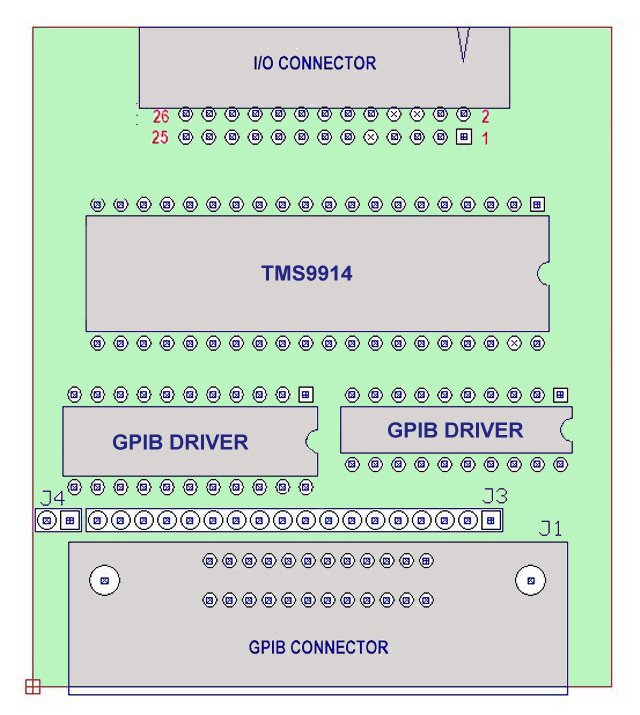

I/O connector pinout

1:   +5V 2:   +5V
3:   /ACCGR 4:   /ACCRQ
5:   SC (see Note) 6:   n.c.
7:   /RESET 8:   n.c.
9:   n.c. 10:   GND
11:   Read/Write 12:   /CE
13:   RS0 14:   DBIN
15:   RS2 16:   RS1
17:   D0 18:   / INT
19:   D2 20:   D1
21:   D4 22:   D3
23:   D6 24:   D5
25:   CLK 26:   D7
Note:  SC signal is available only if the board is populated as a controller.
