components tests
Voltage Controled Oscillators

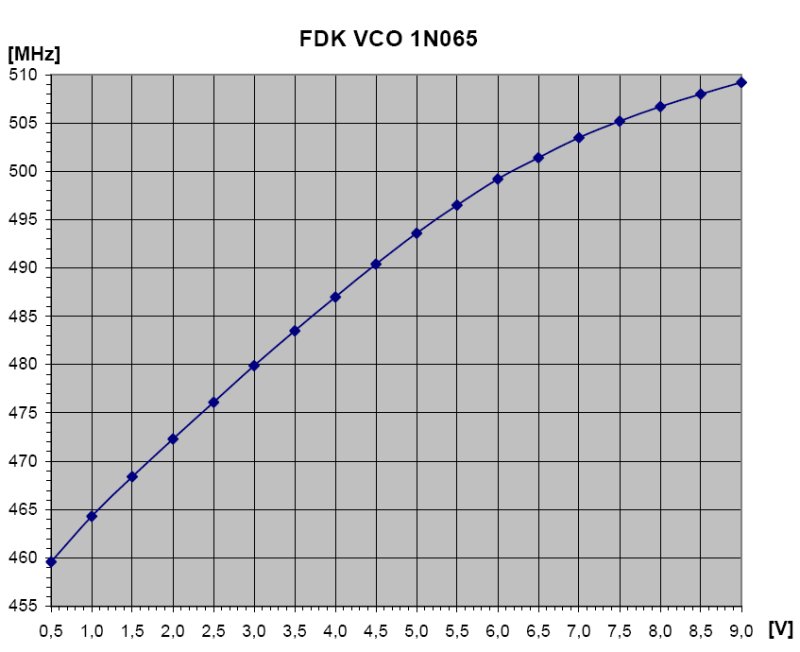

FDK 1N065
Vcc: +5 Volt
Ic: 15 mA
Pout: 5 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 459.6 464.3 468.4 472.3 476.1 479.9 483.5 487.0 490.4 493.6 496.5 499.2 501.4 503.5 505.2 506.7 508.0 509.2

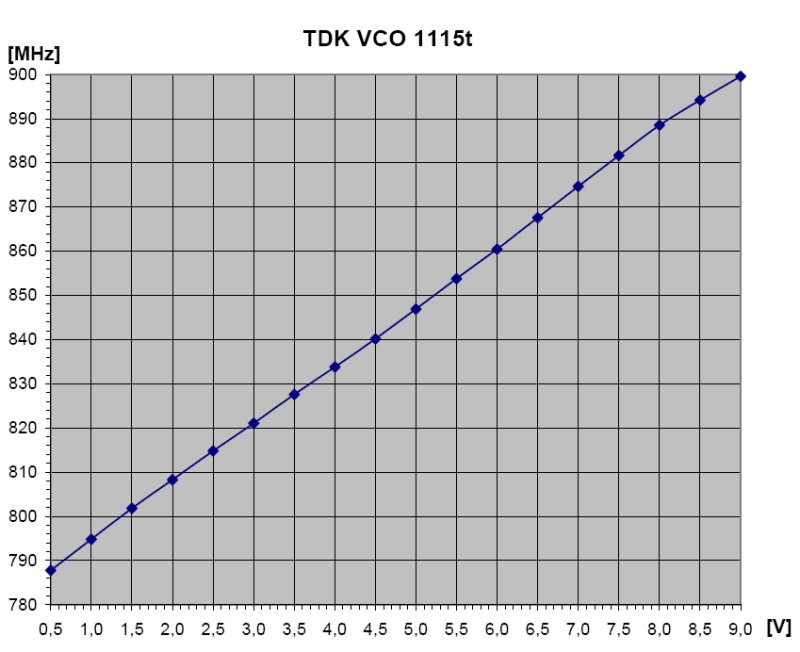

TDK 1115t
Vcc: +5 Volt
Ic: 11 mA
Pout: 2 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 787.8 794.8 801.8 808.3 814.8 821.1 827.6 833.8 840.2 846.9 853.8 860.5 867.6 874.7 881.7 888.5 894.2 899.6

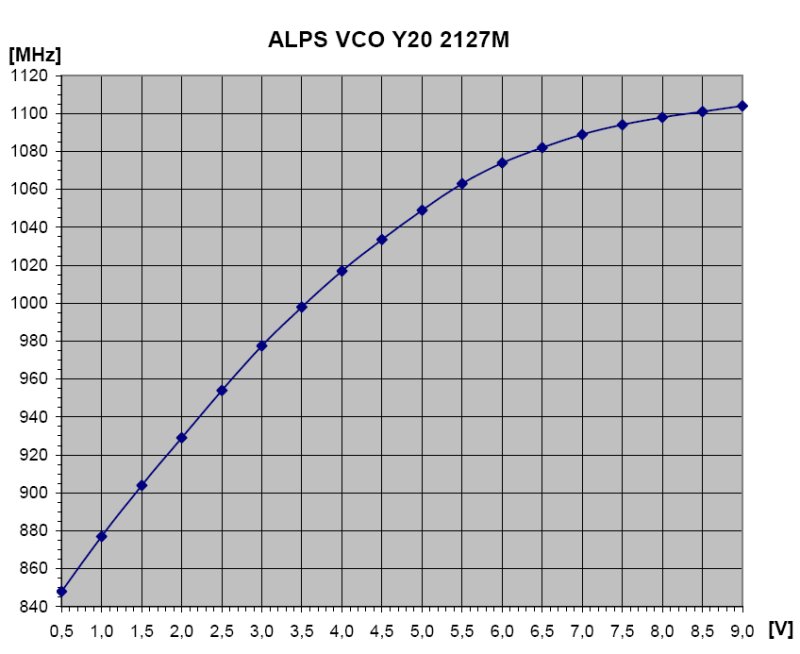

ALPS Y20 2127M
Vcc: +3 Volt
Ic: 36 mA
Pout: 7 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 848 877 904 929 954 977.5 998 1017 1033.5 1049 1063 1074 1082 1089 1094 1098 1101 1104

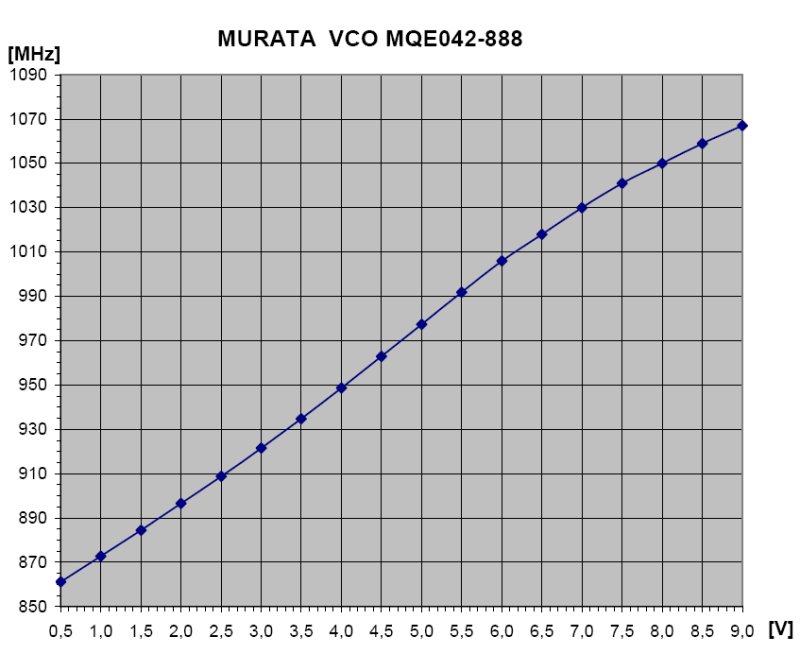

MURATA MQE042-888
Vcc: +5 Volt
Ic: 12 mA
Pout: 0 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 861.2 872.8 884.4 896.6 908.8 921.5 934.8 948.7 963.0 977.4 991.9 1006 1018 1030 1041 1050 1059.1 1067.4

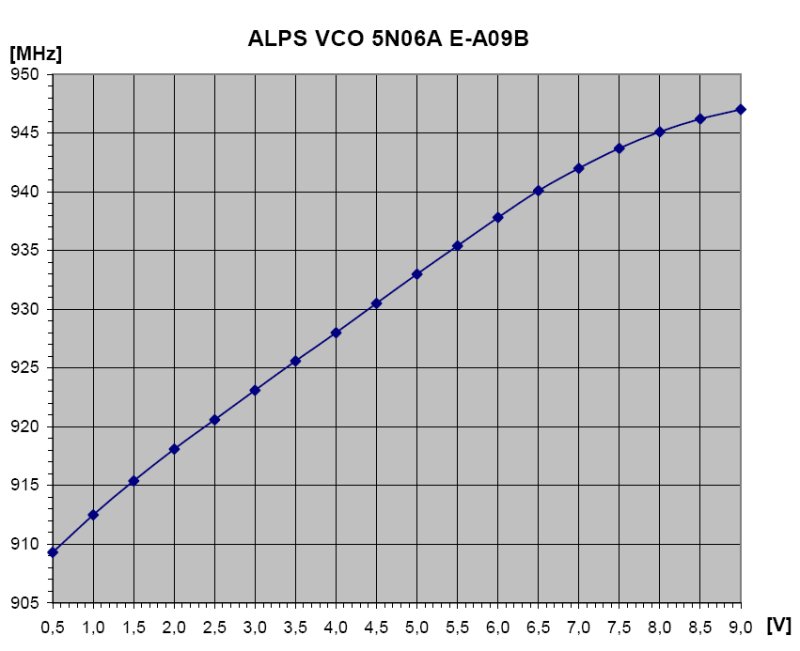

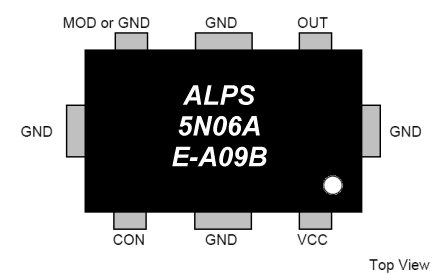

ALPS 5N06A E-A09B
Vcc: +5 Volt
Ic: 18 mA
Pout: 0 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 909.3 912.5 915.4 918.1 920.6 923.1 925.6 928 930.5 933 935.4 937.8 940.1 942 943.7 945.1 946.2 947

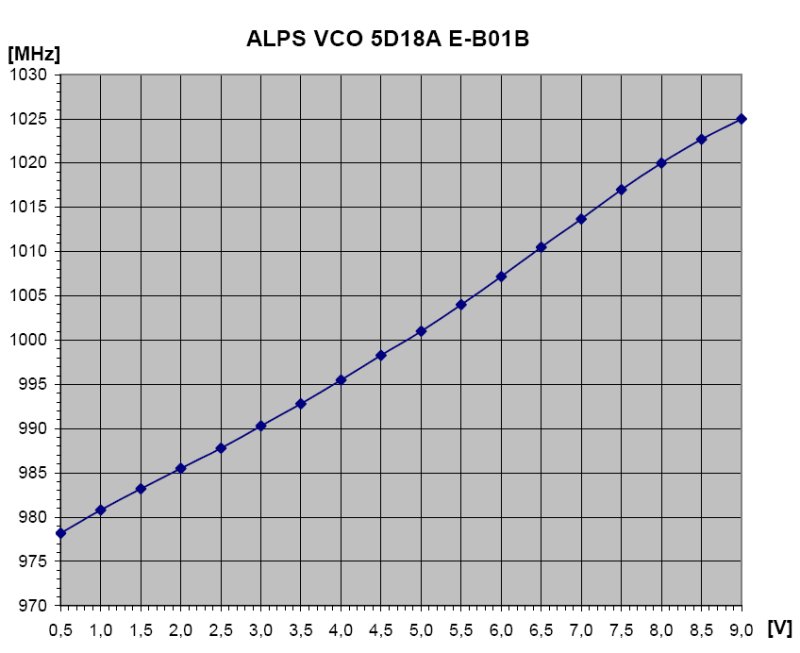

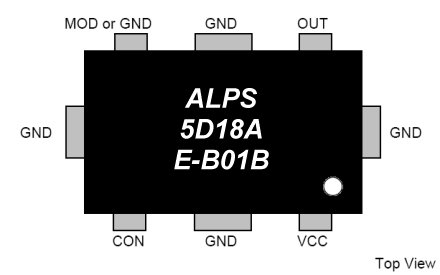

ALPS 5D18A E-B01B
Vcc: +5 Volt
Ic: 19 mA
Pout: 3 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 978.2 980.8 983.2 985.5 987.8 990.3 992.8 995.5 998.3 1001 1004 1007.2 1010.5 1013.7 1017 1020 1022.7 1025

Note: 1. Harmonic at 2050 MHz (Ucon = 9V): -10 dBm

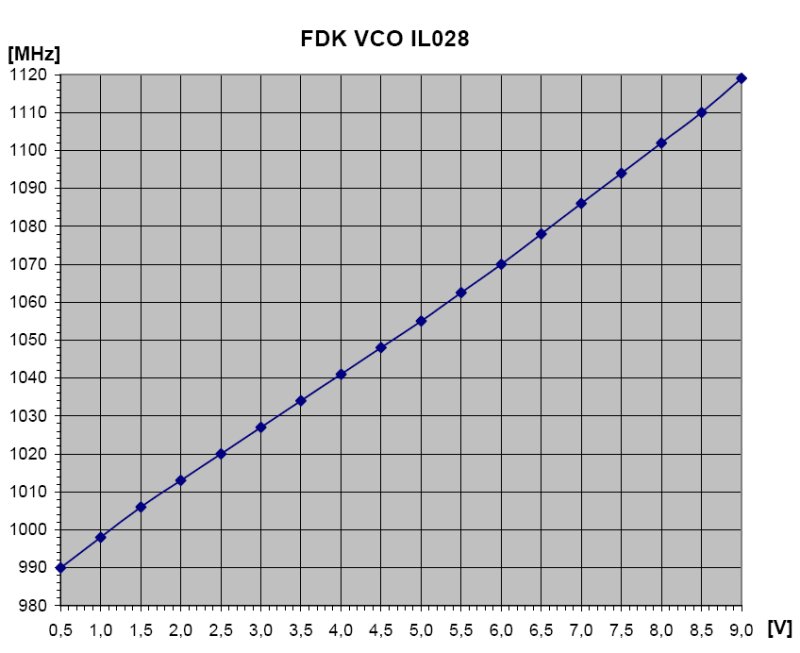

FDK IL028
Vcc: +5 Volt
Ic: 15 mA
Pout: 5 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 990 998 1006 1013 1020 1027 1034 1041 1048 1055 1062.5 1070 1078 1086 1094 1102 1110 1119

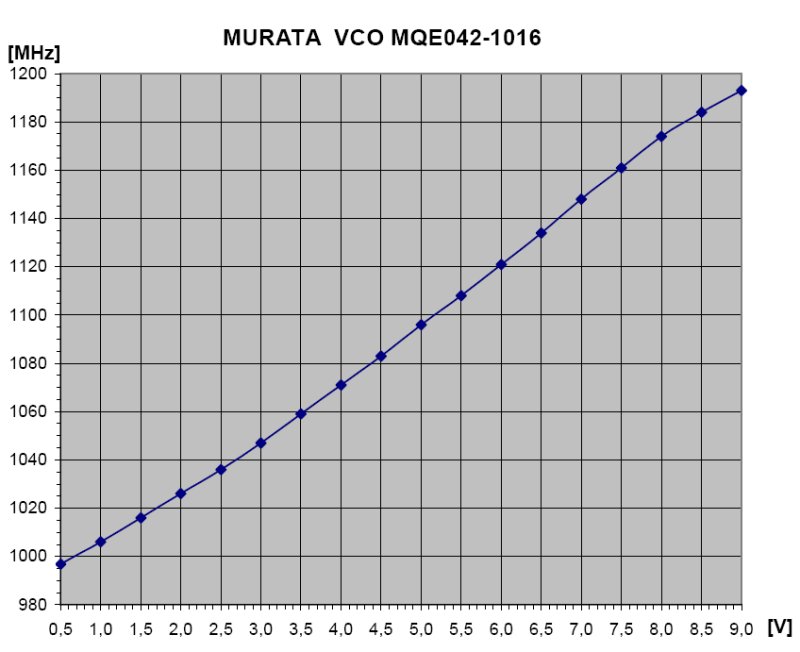

MURATA MQE042-1016
Vcc: +5 Volt
Ic: 10 mA
Pout: 2 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 996.8 1006 1016 1026 1036 1047 1059 1071 1083 1096 1108 1121 1134 1148 1161 1174 1184 1193

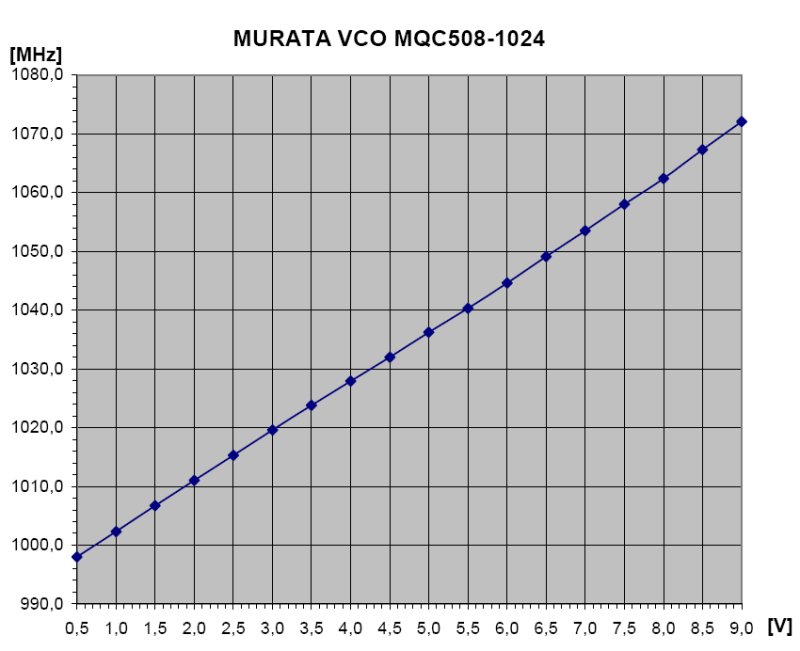

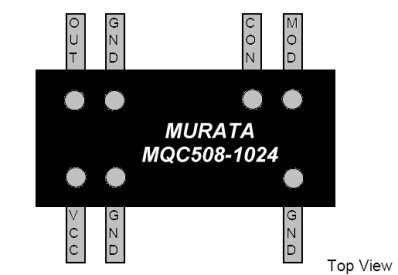

MURATA MQC508-1024
Vcc: +7 Volt
Ic: 8 mA
Pout: 0 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 998 1002.3 1006.7 1011 1015.3 1019.6 1023.8 1027.9 1032 1036.2 1140.3 1144.6 1149.1 1153.5 1158 1162.4 1167.3 1172.1

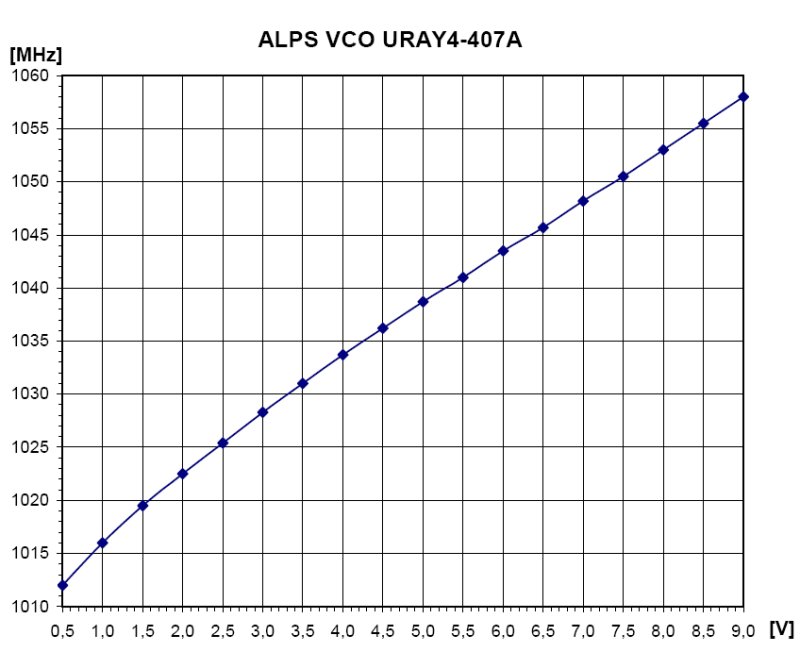

ALPS URAY4-407A 030 109A
Vcc: +6 Volt
Ic: 18 mA
Pout: 3 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 1012 1016 1019.5 1022.5 1025.4 1028.3 1031 1033.7 1036.2 1038.7 1041 1043.5 1045.7 1048.2 1050.5 1053 1055.5 1058

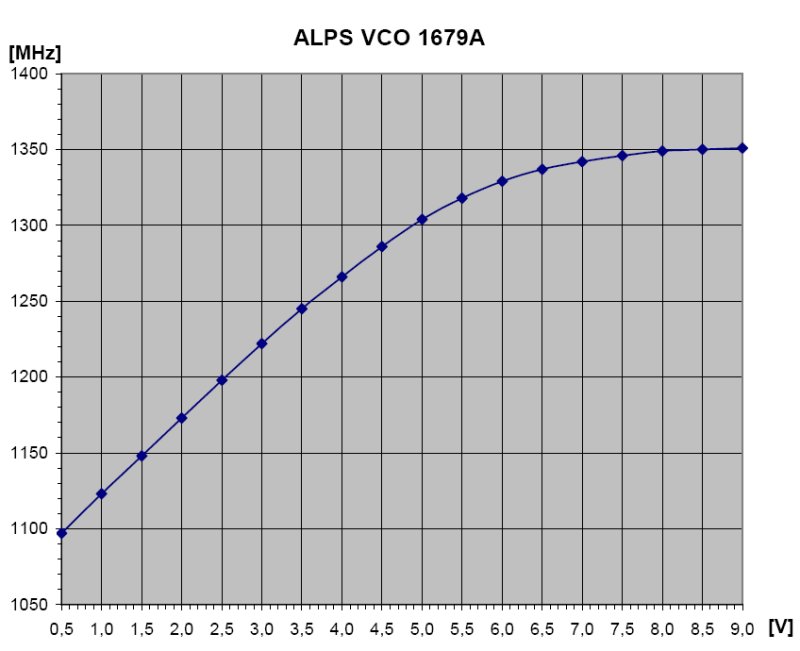

ALPS 1679A/C
Vcc: +5 Volt
Ic: 8 mA
Pout: 0 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 1097 1123 1148 1173 1198 1222 1245 1266 1286 1304 1318 1329 1337 1342 1346 1349 1350 1351

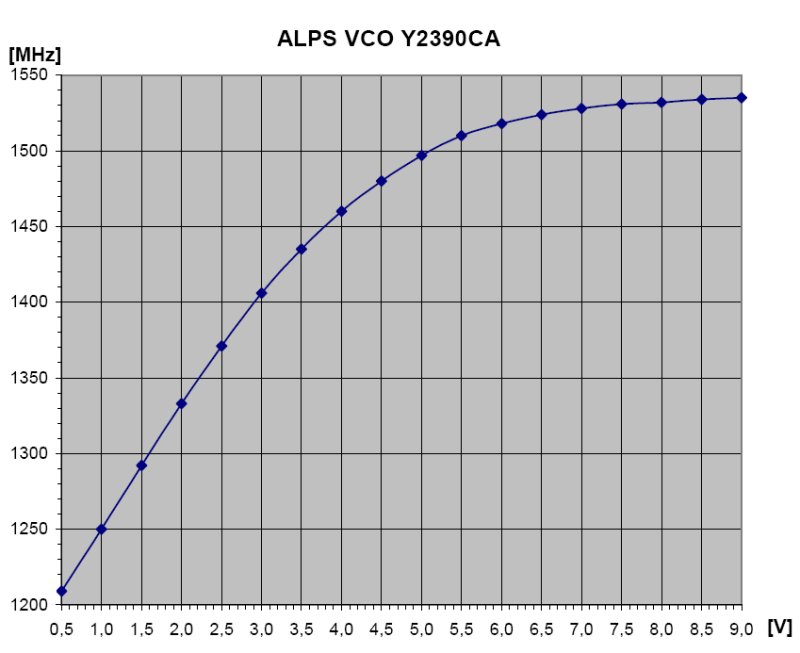

ALPS Y2390CA
Vcc: +3 Volt
Ic: 11 mA
Pout: -2 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 1209 1250 1292 1333 1371 1406 1435 1460 1480 1497 1510 1518 1524 1528 1531 1532 1534 1535

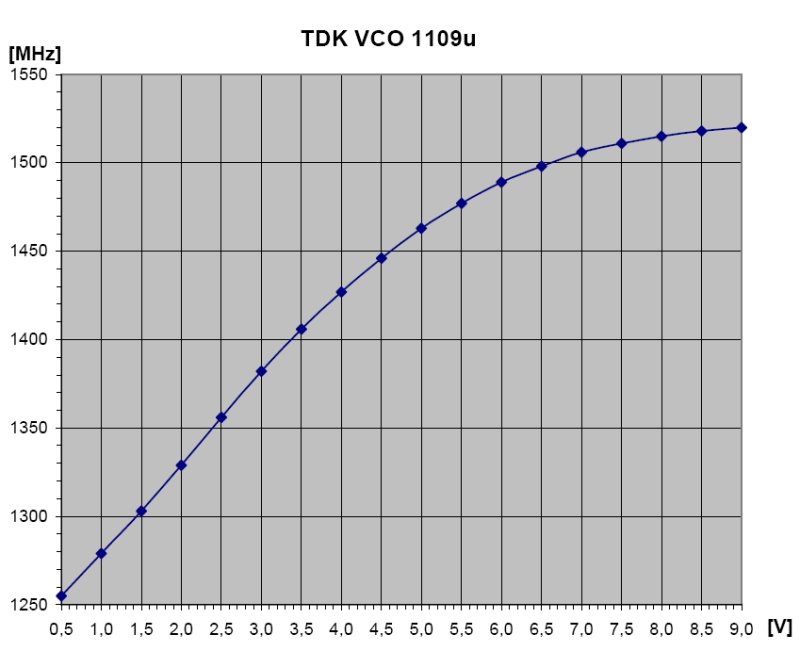

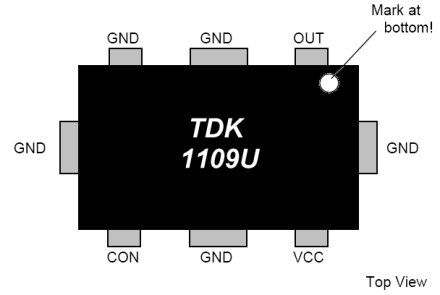

TDK VCO 1109U
Vcc: +5 Volt
Ic: 11.5 mA
Pout: 3 dBm

Ucon [Volts] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0
Frequency [MHz] 1255 1279 1303 1329 1356 1382 1406 1427 1446 1463 1477 1489 1498 1506 1511 1515 1518 1520
